RO Plant Systems
RO Plant Systems

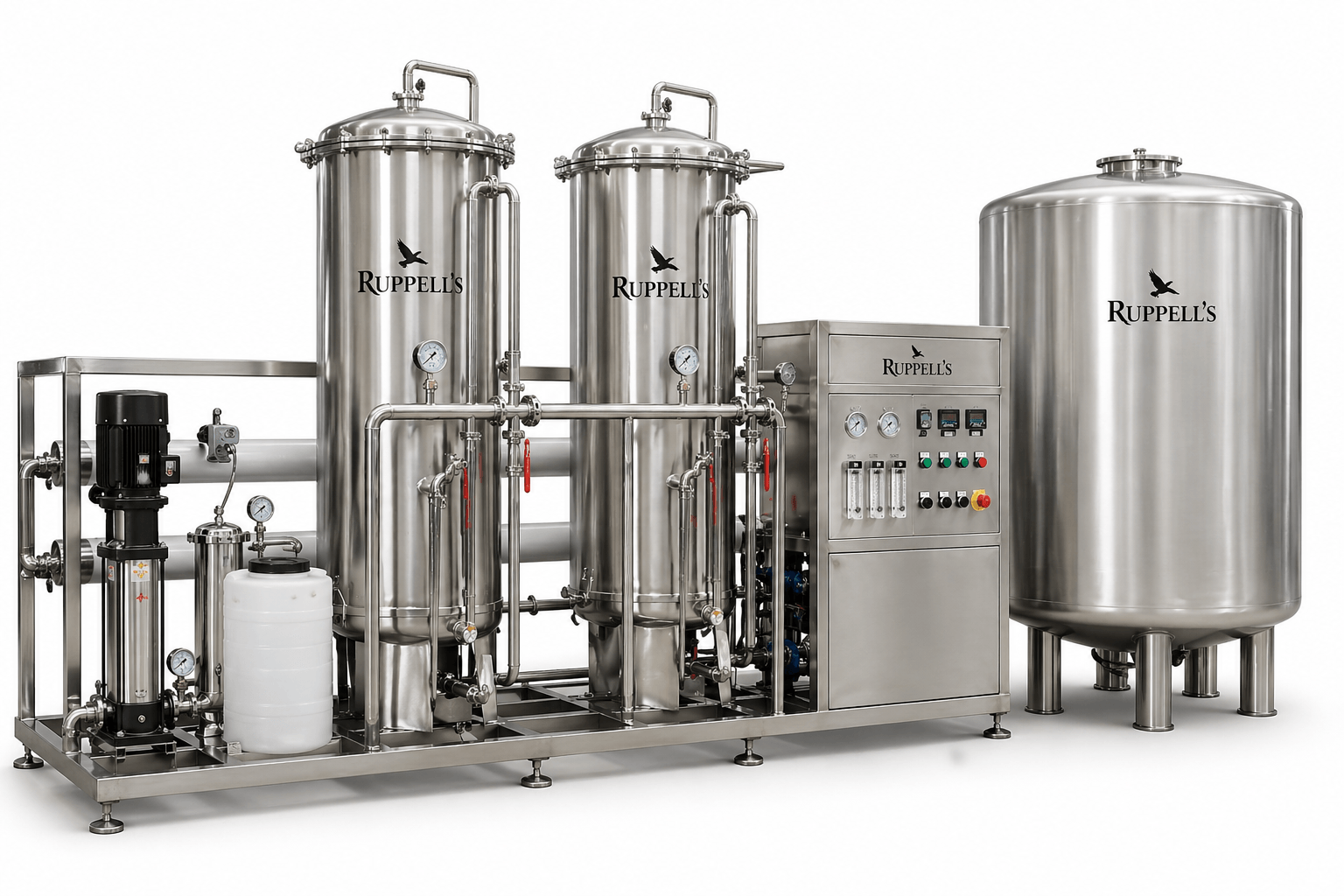

Industrial RO Water Treatment Plants are designed for advanced purification and treatment of raw water for packaged drinking water, beverage manufacturing, and industrial processing applications. These systems are manufactured using food grade stainless steel components and advanced filtration technology to ensure high quality purified water
Applications
- Packaged drinking water plants
- Beverage bottling industry
- Juice filling plants
| Sl No | Parameter | Specification |
|---|---|---|
| 1 | Plant Type | Commercial RO Plant |
| 2 | Capacity | 1000 LPH to 12,000 LPH |
| 3 | Recovery | 50% – 75% |
| 4 | Operating Voltage | 230V / 415V AC |
| 5 | Frequency | 50 Hz |
| 6 | Raw Water Source | Borewell / Municipal / River |
| 7 | TDS Handling Capacity | Up to 2000 ppm (Standard) |
| 8 | Product Water TDS | 10 – 100 ppm |
| 9 | Operating Pressure | 8 – 16 bar |
| 10 | Membrane Type | Thin Film Composite (TFC) |
| 11 | Membrane Size | 4040 / 8040 |
| 12 | Automation | Semi-Auto / Fully Auto |
| 13 | Mounting | Skid Mounted |
| 14 | Frame Material | SS304 / MS Powder Coated |
| 15 | Pipe Material | UPVC / SS |
| 16 | Flow Meter | Acrylic / Digital |
| 17 | Pressure Gauge | Glycerin Filled |
| 18 | Safety Features | Low-Pressure & High-Pressure Cut Off |
Machine Features
- SS 304 food grade construction
- Multi grade sand filter system
- Activated carbon filtration unit
- RO membrane purification technology
- UV sterilization support
- Ozonator integration system
- Anti scalant dosing system
- Mineral Dosing System
- Micron cartridge filtration
- Automated electrical control panel
- High pressure pump system
- Corrosion resistant piping system
