PET Stretch Blow Moulding Machine

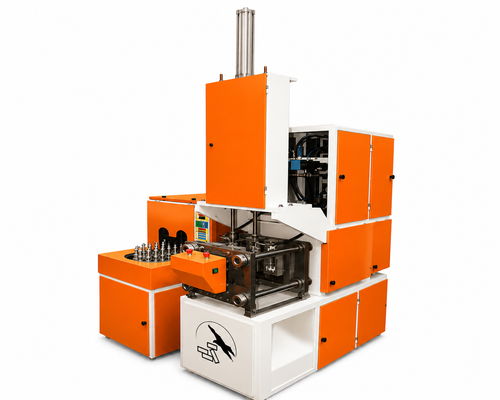

2 Cavity Semi Automatic PET Bottle Blowing Machine
The 2 Cavity Semi Automatic PET Bottle Blowing Machine is designed for efficient and reliable production of PET bottles used in packaged drinking water, beverages, edible oil, and other liquid packaging applications. The machine is suitable for manufacturing bottles ranging from 200 ml to 2000 ml with consistent quality and smooth operation.
Technical Features
- Semi-automatic and fully automatic models
- Infrared preform heating system
- Servo stretching technology
- Automatic preform loading system
- Automatic bottle transfer system
- Air recovery unit
- High-pressure air compressor integration
- Touch screen PLC control panel
- Stable bottle forming technology
- Energy-efficient operation
- Low maintenance system
Machine Description
The PET Stretch Blow Moulding Machine uses advanced infrared preform heating technology and servo stretching systems to produce high-quality PET bottles in different sizes and capacities. The machine is equipped with automatic preform loading systems, air recovery units, bottle transfer systems, and touch screen control panels for efficient operation.
Applications
- Mineral water bottles
- Beverage bottle manufacturing
- Juice bottle production
- Edible oil packaging
| Specification | Details |
|---|---|
| Machine Type | Semi-Automatic PET Bottle Blowing Machine |
| Number of Cavities | 2 Cavity |
| Bottle Size Range | 200 ml to 2000 ml |
| Production Capacity | Approx. 800–1200 Bottles Per Hour |
| Heating System | Infrared Preform Heating System |
| Operation Type | Semi-Automatic |
| Air Compressor | 20 HP High Pressure Air Compressor |
| Air Dryer | 100 CFM High Pressure Air Dryer |
| Filtration System | Pre-Filter & After Filter |
| Chiller Capacity | 3 Ton |
| Power Requirement | 3 Phase, 415 V |
| Construction Material | Heavy Duty Industrial Structure |
| Surface Finish | Colour Coated Finish |
| Cooling System | Water Cooling System |
| Accessories Included | Air & Water Piping Accessories |
| Installation Support | Installation & Commissioning Provided |
| Operator Support | Operator Training Included |
| Application | PET Bottle Manufacturing |
| Suitable Industries | Water, Beverage, Oil & Pharma Industry |

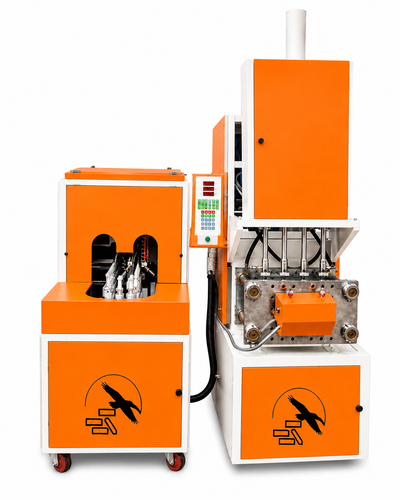

4 Cavity Semi Automatic PET Bottle Blowing Machine
The 4 Cavity Semi Automatic PET Bottle Blowing Machine is specially designed for high speed and efficient production of PET bottles used in packaged drinking water, beverages, edible oil, pharmaceutical, and other liquid packaging industries. The machine is suitable for manufacturing PET bottles ranging from 200 ml to 2000 ml with excellent finishing and consistent bottle quality.
Technical Features
- Semi-automatic and fully automatic models
- Infrared preform heating system
- Servo stretching technology
- Automatic preform loading system
- Automatic bottle transfer system
- Air recovery unit
- High-pressure air compressor integration
- Touch screen PLC control panel
- Stable bottle forming technology
- Energy-efficient operation
- Low maintenance system
Machine Description
The PET Stretch Blow Moulding Machine uses advanced infrared preform heating technology and servo stretching systems to produce high-quality PET bottles in different sizes and capacities. The machine is equipped with automatic preform loading systems, air recovery units, bottle transfer systems, and touch screen control panels for efficient operation.
Applications
- Mineral water bottles
- Beverage bottle manufacturing
- Juice bottle production
- Edible oil packaging
| Specification | Details |
|---|---|
| Machine Type | Semi-Automatic PET Bottle Blowing Machine |
| Number of Cavities | 4 Cavity |
| Bottle Size Range | 200 ml to 2000 ml |
| Production Capacity | Approx. 1200–2600 Bottles Per Hour |
| Heating System | Infrared Preform Heating System |
| Operation Type | Semi-Automatic |
| Air Compressor | 25 HP High Pressure Air Compressor |
| Chiller Capacity | 3 Ton |
| Power Requirement | 3 Phase, 415 V |
| Construction Material | Heavy Duty Industrial Structure |
| Surface Finish | Colour Coated Finish |
| Cooling System | Water Cooling System |
| Accessories Included | Required Air & Water Piping Accessories |
| Installation Support | Installation & Commissioning Provided |
| Operator Support | Operator Training Included |
2 Cavity Fully Automatic PET Bottle Blowing Machine
2 Cavity PET Blowing Machine is a high performance fully automatic system developed for fast, accurate, and energy saving PET bottle production. Designed with advanced servo driven technology, the machine provides smooth clamping, stretching, and bottle transfer operations for stable and reliable performance during continuous production. Built for modern packaging industries, this machine is ideal for manufacturing PET bottles used in packaged drinking water, soft drinks, juices, edible oils, detergents, and other liquid products. With an output capacity of up to 60 Bottles Per Minute (BPM) or 3,600 Bottles Per Hour (BPH), the system ensures high productivity along with excellent bottle finishing quality.
Technical Features
- Semi-automatic and fully automatic models
- Infrared preform heating system
- Servo stretching technology
- Automatic preform loading system
- Automatic bottle transfer system
- Air recovery unit
- High-pressure air compressor integration
- Touch screen PLC control panel
- Stable bottle forming technology
- Energy-efficient operation
- Low maintenance system
Machine Description
The PET Stretch Blow Moulding Machine uses advanced infrared preform heating technology and servo stretching systems to produce high-quality PET bottles in different sizes and capacities. The machine is equipped with automatic preform loading systems, air recovery units, bottle transfer systems, and touch screen control panels for efficient operation.
Applications
- Mineral water bottles
- Beverage bottle manufacturing
- Juice bottle production
- Edible oil packaging
| Specification | Details |
|---|---|
| Machine Type | Fully Automatic Servo Driven PET Blowing Machine |
| Number of Cavities | 2 Cavity |
| Production Capacity | Up to 60 BPM / 3,600 Bottles Per Hour |
| Bottle Size Range | 200 ml to 2 Litres |
| Compatible Neck Sizes | 28 mm Alaska, 28 mm PCO, 1881/1810, 29/21 CTC |
| Heating System | 8-Zone Ruby Infrared Heating Tunnel |
| Motion System | Fully Servo-Based Clamping & Stretching |
| Control Panel | PLC System with 7” Touch Screen HMI |
| Connected Electrical Load | Approx. 22 kW |
| Average Power Consumption | Approx. 10–12 kW |
| Air Pressure Requirement | 30 Bar HP Air / 10 Bar LP Air |
| Air Consumption | Approx. 35 CFM |
| Cooling System | 3 TR Water Chiller |
| Machine Dimensions | Approx. 4200 × 1900 × 2100 mm |
| Machine Weight | Approx. 3800 kg |
| Suitable Applications | Water, Juice, Soft Drink, Oil & Chemical Bottles |
| Blowing Valve System | High-Speed Air Recovery Valve System |
| Optional Features | Bottle Counter, Neck Orientation, Remote Monitoring |
| Required Utilities | HP Compressor, LP Compressor, Air Dryer, Air Receiver & Chiller |
Machine Description
The PET Stretch Blow Moulding Machine uses advanced infrared preform heating technology and servo stretching systems to produce high-quality PET bottles in different sizes and capacities. The machine is equipped with automatic preform loading systems, air recovery units, bottle transfer systems, and touch screen control panels for efficient operation.
Applications
- Mineral water bottles
- Beverage bottle manufacturing
- Juice bottle production
- Edible oil packaging
4 Cavity Fully Automatic PET Bottle Blowing Machine
4 Cavity PET Blowing Machine is a modern high speed bottle manufacturing system developed for superior productivity, precise bottle formation, and energy efficient operation. Built with advanced TOP blowing technology and intelligent servo driven movement, the machine ensures smooth clamping, stretching, and indexing
performance for continuous production with excellent accuracy. Designed for large scale PET bottle manufacturing plants, this fully automatic machine is suitable for producing bottles used in packaged drinking water, carbonated beverages, juices, edible oils, detergents, and various liquid packaging applications. With an output capacity of up to 90 Bottles Per Minute (BPM) or 5,400 Bottles Per Hour (BPH), the machine delivers stable high speed production with reduced downtime and consistent bottle
quality.
performance for continuous production with excellent accuracy. Designed for large scale PET bottle manufacturing plants, this fully automatic machine is suitable for producing bottles used in packaged drinking water, carbonated beverages, juices, edible oils, detergents, and various liquid packaging applications. With an output capacity of up to 90 Bottles Per Minute (BPM) or 5,400 Bottles Per Hour (BPH), the machine delivers stable high speed production with reduced downtime and consistent bottle
quality.
Technical Features
- fully automatic models
- Infrared preform heating system
- Servo stretching technology
- Automatic preform loading system
- Automatic bottle transfer system
- Air recovery unit
- High-pressure air compressor integration
- Touch screen PLC control panel
- Stable bottle forming technology
- Energy-efficient operation
- Low maintenance system
| Specification | Details |
|---|---|
| Machine Type | Fully Automatic All-Electrical 3 Servo Driven PET Blowing Machine |
| Number of Cavities | 4 Cavity |
| Technology | Advanced TOP Blowing Technology |
| Production Capacity | Up to 90 BPM / 5,400 Bottles Per Hour |
| Bottle Capacity Range | 200 ml to 2 Litres |
| Supported Neck Types | 28mm Alaska, 28mm PCO, 1881/1810 PCO, 29/21 CTC |
| Heating System | 8-Zone Ruby Infrared Preform Heating Tunnel |
| Motion System | Servo-Driven Clamping & Stretching Mechanism |
| Control System | Schneider PLC with 7” HMI Touch Screen |
| Electrical Connected Load | Approx. 28 kW |
| Average Power Consumption | Approx. 12–14 kW |
| Air Pressure Requirement | 30 Bar High Pressure / 10 Bar Low Pressure |
| Air Consumption | Approx. 40 CFM with Air Recovery System |
| Cooling Requirement | 3 TR Chiller for Neck & Mould Cooling |
| Machine Size (L × W × H) | Approx. 4600 × 2000 × 2200 mm |
| Machine Weight | Approx. 4200 kg |
| Suitable Bottle Types | Water, Soft Drinks, Juice, Edible Oil & Detergent Bottles |
| Blowing Valve System | High-Speed Seitz / SMC Type Valve with Air Recovery |
| Optional Features | Bottle Counter, Neck Orientation, Remote Monitoring |
| Required Utilities | HP Compressor, LP Compressor, Air Dryer, Air Receiver & Water Chiller |
6 Cavity Fully Automatic PET Bottle Blowing Machine
6 Cavity Automatic PET Stretch Blow Moulding Machine is a high speed PET bottle manufacturing solution designed for large scale production applications. Engineered with advanced automation and servo stretching technology, the machine ensures accurate bottle formation, smooth operation, and consistent production quality with minimal
downtime. This fully automatic PET blowing system is suitable for manufacturing bottles ranging from 200 ml to 2 Litres for packaged drinking water, soft drinks, juices, edible oils, and various liquid packaging industries. With an output capacity of up to 150 Bottles Per Minute, the machine delivers excellent efficiency and stable high
volume production performance.
downtime. This fully automatic PET blowing system is suitable for manufacturing bottles ranging from 200 ml to 2 Litres for packaged drinking water, soft drinks, juices, edible oils, and various liquid packaging industries. With an output capacity of up to 150 Bottles Per Minute, the machine delivers excellent efficiency and stable high
volume production performance.
Technical Features
- fully automatic models
- Infrared preform heating system
- Servo stretching technology
- Automatic preform loading system
- Automatic bottle transfer system
- Air recovery unit
- High-pressure air compressor integration
- Touch screen PLC control panel
- Stable bottle forming technology
- Energy-efficient operation
- Low maintenance system
Applications
- Mineral water bottles
- Beverage bottle manufacturing
- Juice bottle production
- Edible oil packaging
Machine Description
The PET Stretch Blow Moulding Machine uses advanced infrared preform heating technology and servo stretching systems to produce high-quality PET bottles in different sizes and capacities. The machine is equipped with automatic preform loading systems, air recovery units, bottle transfer systems, and touch screen control panels for efficient operation.
| Parameter | Specification |
|---|---|
| Machine Type | Fully Automatic PET Stretch Blow Moulding Machine |
| Number of Cavities | 6 Cavity |
| Production Capacity | Up to 150 Bottles Per Minute |
| Bottle Size Range | 200 ml to 2 Litres |
| Stretching System | Servo Stretching Mechanism |
| Preform Feeding | Automatic Preform Loader with SS Hopper |
| Bottle Handling | Auto Bottle Ejection & Transfer Unit |
| Control Panel | 10” B&R Touch Screen Display |
